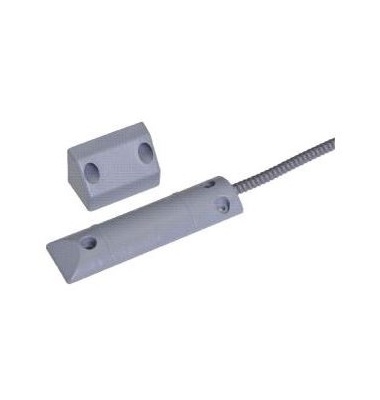

ISP-RSC2-110S LSN shutter door contact
Project Description
| LSN operating voltage |
15 V to 33 V |
| Reed contact type |
Normally open contact |
| Switch tolerance |
≥ 107 |
| Installation distance |
≥ 20 mm |
| Magnetic material |
AlNiCo 500 |
| Temperature range |
-25 °C to +70 °C |
| Connection cable |
LiY(St)Y 4 x 0.22 mm2, white |
| Cable length |
4 m |
| Cable protection tube |
Flexible metal tube, diameter: 6/9 mm, covered in plastic, length: 1 m, color: gray |
| Housing material/color |
Plastic/gray |
| Weight (with cable and magnet) |
Approx. 285 g |
| Switch dimension |
150 x 40 x 13.5 mm |
| Magnet dimension |
65 x 42 x 35 mm |
| Protection category |
IP67 |
| Environmental class VdS/EN |
III/IIIA |
