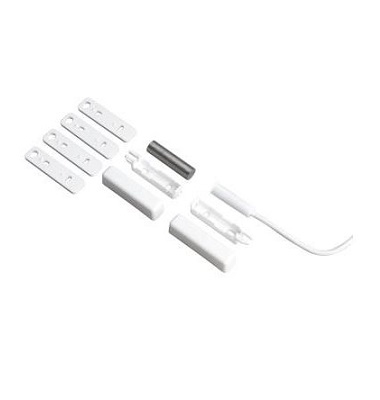

ISP-MCS2-FP110 LSN Surface-Mount Magnetic Contact
Project Description
| Minimum operating voltage in VDC | 15 |
| Maximum operating voltage in VDC | 33 |
| Maximum current consumption in mA | 0.25 |
| Reed contact | NO |
| Switch tolerance | ≥ 107 |
| Dimension in cm (H x W x D) | 1.2 x 1.18 x 4.28 |
| Dimension in cm (Ø x D) | 0.8 x 3.0 |
| Material | AlNiCo 500 |
| Housing material | ABS |
| Color | white |
| Connection cable | LiY(St)Y 4 x 0,22 mm2 with shield, exterior Ø 3,2 mm, length 4 m |
| Minimum operating temperature in °C | -25 |
