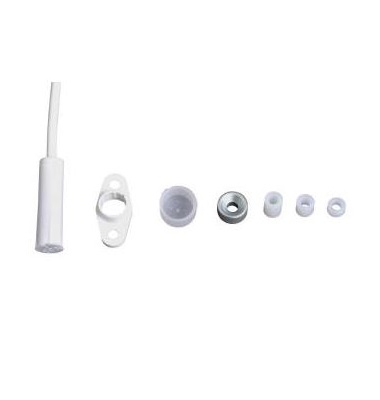

ISP-MCOLS3-U110S magnetic and bolt contact
Project Description
| Switch dimension |
Diameter: 8 mm x 30 mm |
| Magnet |
Diameter: 10 mm x 3.6 mm x 5 mm (neodymium) |
| Reed contact type |
2x normally open contacts |
| LSN operating voltage |
15 V to 33 V |
| Current consumption |
0.4 mA |
| Switch tolerance |
≥ 107 |
| Environmental class |
VDS III – EN IIIa |
| Temperature range |
-40 °C to +70 °C |
| Protection category |
IP 67 |
| Colors |
White (RAL 9003) |
| Connection cable |
LiY(St)Y 4 x 0.22 mm2 |
| Cable length |
Standard length 4 m; maximum length 25 m |
| VdS class |
|
| Combined opening and closure monitoring |
C |
| Opening monitoring |
C |
