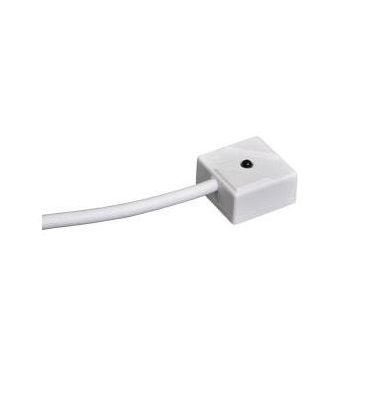

ISP-GBD2-P110S Passive Glass Break Detector
Project Description
| Max. Voltage |
33 V |
| Current consumption |
≤ 560 μA |
| Alarm display |
LED |
| Alarm buffer |
Regulated by EMZ |
| Temperature range /Environmental class |
-25° C … +70° C / III (VdS) |
| Housing color |
White (RAL9010), brown (RAL8016) |
| Cabel |
LiY(St)Y 4 x 0,22 mm2 |
| Cabel length |
2 …10 m, standard length 2 respectively 4 m |
| VdS-Nr. |
G xxx xxx |
| Protection category |
IP 65 |
| Dimensions |
18 mm x 18 mm x 10 mm |
| Operating area |
Radius 2 m |
| Installation |
Bonding with Loctite Glas-metal adhesive set 319 |
| Functionality test |
With glass breakage dectector tester GP 2 |
