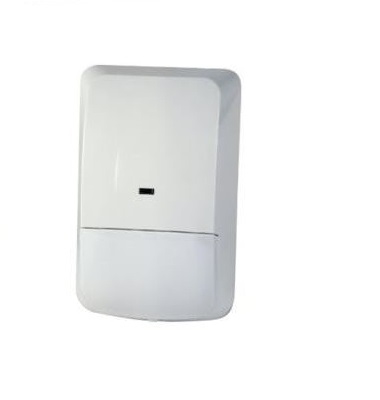

DS 935 LSN Infrared Motion Detector
Project Description
| Maximum operating voltage in VDC | 33 |
| Maximum current consumption in mA | 0.8 |
| Dimension in cm (H x W x D) | 11 x 6.9 x 4.5 |
| Monitoring area in m | |
| Wide-angle mirror | 11 x 11 |
| Curtain mirror | 21 x 3 |
| Minimum installation height in m | 2 |
| Maximum installation height in m | 2.6 |
| Rates of movement in m/s | |
| Wide-angle mirror | 0.2 - 3.0 |
| Curtain mirror | 0.2 - 4.0 |
| Sensitivity setting | Standard or high sensitivity |
