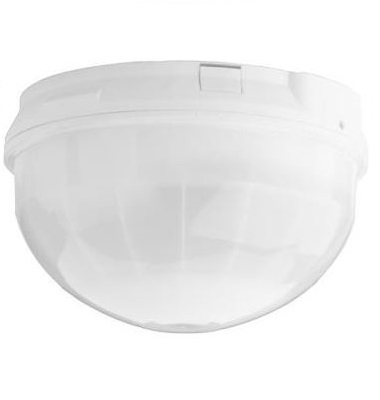

DS938Z and ZX938Z Series Panoramic PIR Detectors
Project Description
| Material: |
High impact ABS plastic enclosure |
| Dimensions: |
8.4 cm x 13.3 cm (3.3 in. x 5.25 in.) |
| |
|
| Operating Temperature: |
-29°C to +49°C (-20°F to +120°F) For UL Listed Applications, 0°C to + 49°C (+32°F to +120°F) |
| Radio Frequency Interference (RFI) Immunity: |
No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| DS938Z: |
Complies with Environmental Class II (EN50130-5) |
| |
|
| Height (recommended): |
2.5 m to 6 m (8 ft to 18 ft) |
| Location: |
Mounts directly to ceiling or to standard octagonal electrical box. |
| Internal Pointability: |
Coverage is adjustable ±10° horizontally, +2° to -18° vertically. |
| |
|
| Alarm: |
Form C reed relay at 3.0 W, 125 mA at 28 VDC for resistive loads |
| Tamper: |
Normally-closed. Contacts rated at 28 VDC, 125 mA maximum. |
