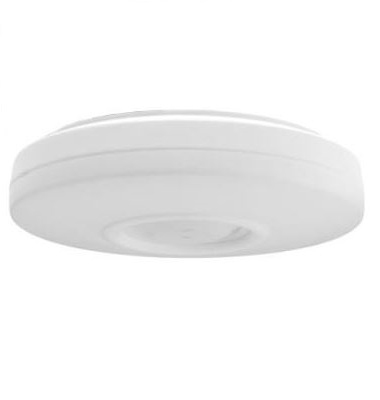

DS936 Low Profile Panoramic PIR Detector
Project Description
| Material: |
High impact ABS plastic enclosure |
| Dimensions: |
3.05 cm x 11.7 cm (1.2 in. x 4.6 in.) |
| |
|
| Operating Temperature: |
-29°C to +49°C (-20°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Radio Frequency Interference (RFI) Immunity: |
No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| DS936: |
Complies with Environmental Class II (EN50130-5) |
| |
|
| Height Range: |
2 m to 3.6 m (7 ft to 12 ft) |
| Location: |
Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box |
| Pattern Pointability: |
±15° rotational |
| |
|
| Alarm: |
Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg. |
| Tamper: |
Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum. |
