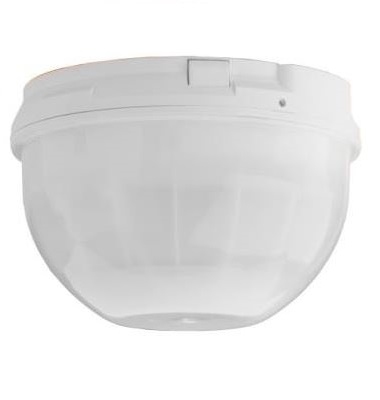

DS9360 Panoramic TriTech Detector
Project Description
| Design: |
Modular high impact ABS electronic head and mounting/wiring base design with rugged polyethylene dome provides easy access to field setup switches. |
| Dimensions: |
8.5 cm x 13.3 cm (3.5 in. x 5.25 in.) |
| Material: |
High impact ABS plastic enclosure |
| |
|
| Operating Temperature: |
-40°C to +49°C (-40°F to +120°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120° F) |
| Radio Frequency Interference (RFI) Immunity: |
No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| Complies with Environmental Class II (EN50130-5) |
|
| |
|
| Height Range: |
2.5 m to 6 m (8 ft to 18 ft) recommended |
| Location: |
Mounts directly to ceiling or to standard 10.2 cm (4 in.) octagonal electrical box. |
| |
|
| Alarm: |
Form C reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads. |
| Tamper: |
Normally-closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 125 mA maximum. |
