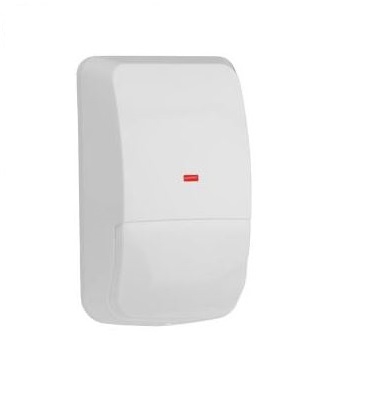

DS778 Long Range PIR Detector
Project Description
| Dimensions: |
14.6 cm x 9.5 cm x 6.35 cm (5.75 in. x 3.75 in. x 2.5 in.) |
| Material: |
High impact ABS plastic enclosure |
| |
|
| Operating Temperature: |
-40°C to +49°C (-40°F to +120°F) For UL Listed Applications, 0°C to + 49°C (+32°F to +120°F) |
| Radio Frequency Interference (RFI) Immunity: |
No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| Complies with Environmental Class II (EN50130-5) |
|
| |
|
| Height Range: |
Recommended 2 m to 2.6 m (6.5 ft to 8.5 ft) |
| Internal Pointability: |
Coverage is adjustable ±10° horizontally, +2° to -18° vertically. |
| |
|
| Alarm: |
Form C contacts rated at 3.0 W, 125 mA at 28 VDC for resistive loads. |
| Tamper: |
Normally-closed. Contacts rated at 28 VDC, 125 mA maximum. |
| |
|
| Current Draw: |
18 mA at 12 VDC |
